SECTION 570.APPENDIX C PROCEDURE TO ESTIMATE SOIL INFILTRATION RATE



Section 570.APPENDIX C Procedure to Estimate Soil Infiltration Rate



Procedure to Estimate Soil Infiltration Rate



Soil infiltration rate for a runoff field application area can be determined by using:



1. Any of three methods given in EPA Process Design Manual Land Treatment of Municipal Wastewater dated October, 1981; Chapter 3.4 Infiltration Rate Measurements.



2. The following modified cylinder infiltrometer method:



Procedure



A. Preparing the test site



Drive a rigid, leak-proof container approximately 6 inches into the ground taking car to avoid disturbing the soil as much as possible. This container should be approximately 2 feet long by at least 10 inches wide, and may be of any suitable material. A metal pipe is recommended (see Figure 1).



B. Saturation and Swelling of the Soil



Before conducting the test, saturate the soil for at least four hours, but preferably 8 hours, by refilling the container with clean water as needed.



C. Testing



At the time of the test, adjust the water level to 12 inches above the soil surface. Allow the water level to drop six inches and then commence measuring the drop in water level at 15 minute intervals until the water has infiltrated. Repeat part C.



D. Recording Results



Record results of all tests as the total minutes required for the last six inches of water to infiltrate (minutes/inch). Average the two tests at each site. For example:



Site 1 Data Recorded





min

inch

min

inch

0

6.0

45

2.5

15

4.5

60

2.0

30

3.5







60 minutes

=

60

=

15 min/inch

(6 - 2 inches)

4



E. Soil Infiltration Rate



The soil infiltration rate (SI) is calculated at each site:



SI

=

36

=

inch/hour

min/inch



Example



SI

=

36

=

2.4 inch/hour

15



F. Average the soil infiltration rates from each testing site to calculate the SI value for the runoff field application area.



These tests must not be made on frozen ground and include a safety factor in Part E to compensate for inherent inaccuracies in this procedure.



3. Data from a modern U.S.D.A. S.C.S. soil survey for the county where the runoff field application system will be installed. Use the Table of Engineering Properties - Physical and Chemical Properties for Permeability of the surface soil layer as follows:



1. Locate the soil name and map symbol for the field application area on the map sheets (example 386A, Downs).



2. On the Physical and Chemical Properties Table locate the surface layer permeability rate.



Example



Table 15 Physical and Chemical Properties of Soils

Soil and map symbol

Depth (inches)

Permeability (in/hr)

386A, 386B

0 7

0.6 2.0

Downs

7 30

0.6 2.0



30 60

0.6 2.0



3. At the surface layer (0 - 7 inches for the example) use the average value of the permeability range to obtain SI.



Example



SI

=

2.0 + 0.6

=

1.3 inches/hour

2

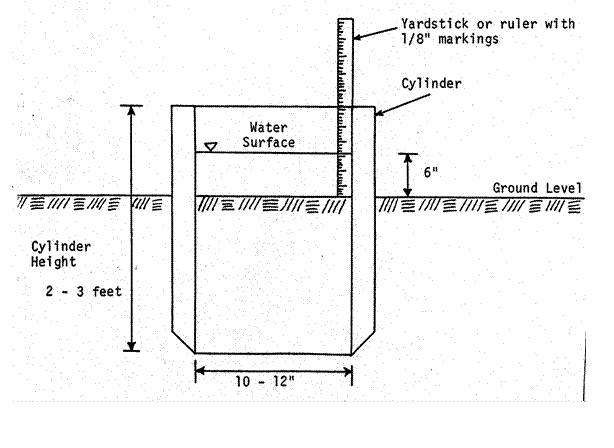

Figure 1: Cylinder Infiltrometer
