Section 570.APPENDIX F Recommend Effluent Transport Systems Designs
|
Type |
Maximum Flow* Qf (gpm) |
Minimum Slope (%) |
Design Velocity (fps) |
Materials |
Dimensions |
|
Pipe |
179 |
0.5 |
2 |
PVC |
6" diam |
|
|
332 |
0.4 |
2 |
PVC |
8" diam |
|
|
|
|
|
|
|
|
Open Channel |
|
|
|
|
|
|
Rectangular |
224 |
0.33 |
2 |
Concrete, Wood, Asphalt, Aluminum |
6" x 6" |
|
|
|
|
|
|
|
|
Trapazoidal |
224 |
0.37 |
2 |
Concrete, Wood, Asphalt, Aluminum |
b = 6" S = 2:1 d = 3' |
Mannings Equation with n = 0.013
 |
 |
||

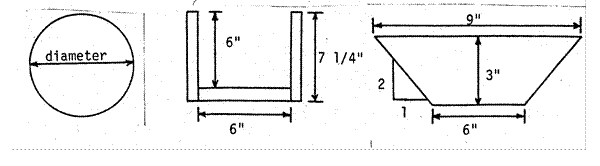

Pipe Rectangular Trapazoidal
