Section 570.APPENDIX I Diagram of Setting Basin Components

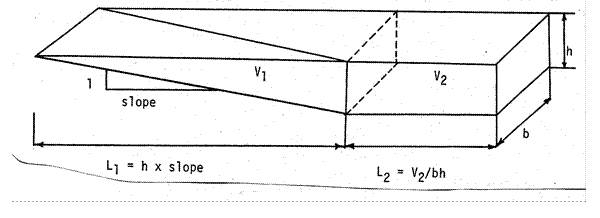

SETTLING BASIS DIMENSIONS (feet)
|
Total Volume = V1 + V2 (cubic feet) |
Total Length = L1 + L2 |
|
V1 = ˝ bhL1 |
Pick: h – 2 to 4 feet |
|
V2 = Total Volume – V1 |
b – 8 to 15 feet recommended |
|
|
slope – 12 to 15 recommended |
 |
 |
