Section 890.APPENDIX B   Illustrations for Subpart A

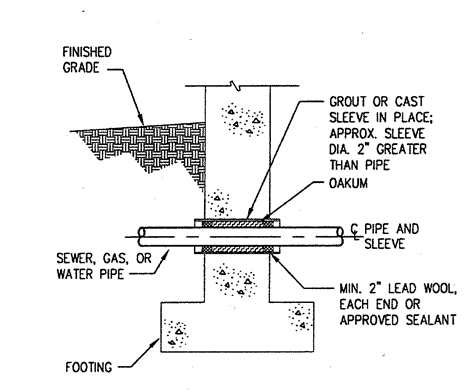

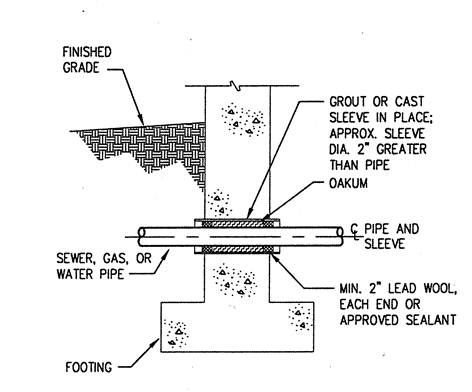

Section 890.ILLUSTRATION AA   Sleeves

(Referenced in Section 890.180(c) and (d))

(Source:  Amended at 38 Ill. Reg. 9940, effective April 24, 2014)

Section 890.APPENDIX B   Illustrations for Subpart A

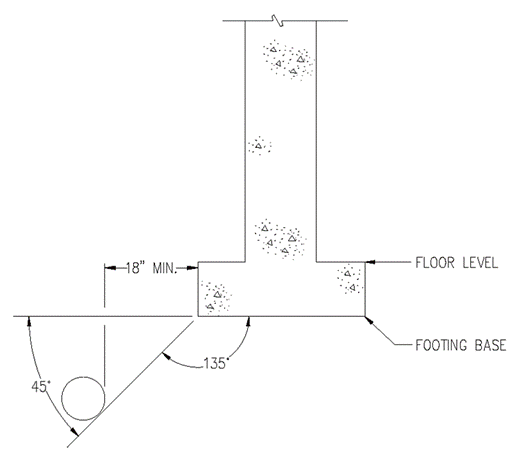

Section 890.ILLUSTRATION BB   Buried Piping Parallel to Footing

(Referenced in Section 890.180(e) and (f))

(Source:  Added at 38 Ill. Reg. 9940, effective April 24, 2014)

Section 890.APPENDIX B   Illustrations for Subpart A

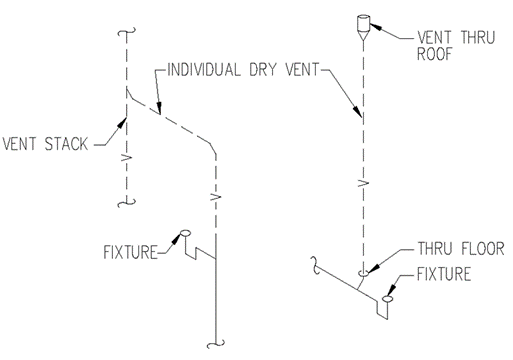

Section 890.ILLUSTRATION CC   Individual Dry Vent

(Referenced in Section 890.120, Definition of "Individual Dry Vent.")

(Source:  Added at 38 Ill. Reg. 9940, effective April 24, 2014)
