Section 570.APPENDIX H Recommended Distribution Manifold Designs
|
Type1 |
Maximum Flow Qf (gpm) |
Slope |
Dimensions |
Materials2 |
Weirs3 |

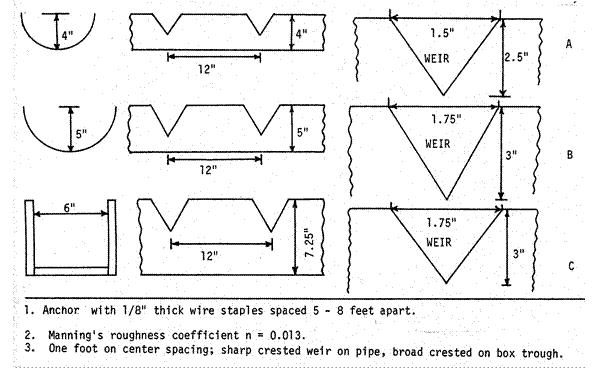

Diagram |
|
|
|
|
|
|
|
|
|
½ Pipe |
150 |
level |
8" diam. |
PVC |
30° V-notch |
A |
|
|
225 |
level |
10" |
PVC |
30° V-notch |
B |
|
Box Trough |
225 |
level |
6" x 6" |
2" x 8" dimension lumber |
30° V-notch |
C |
|
Aluminum Guttering |
(Size with the Box Trough Criteria Above) |
|||||
 |

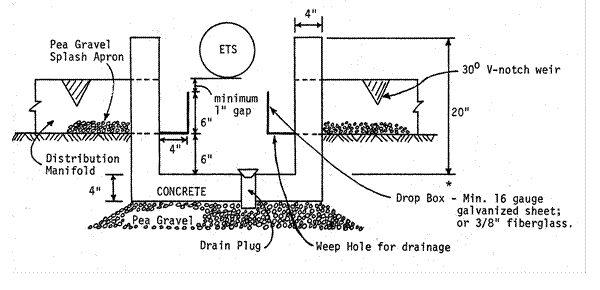

CROSS-SECTION VIEW
