Section 905.APPENDIX A Illustrations and Exhibits
Section 905.ILLUSTRATION K Serial Distribution
Section 905.EXHIBIT A Plan View #1 – Gravel System
![](07700905ZZ9996akR_files/image001.gif)
(Source: Amended at 20 Ill. Reg.
2431, effective March 15, 1996)
Section 905.APPENDIX A Illustrations and Exhibits
Section 905.ILLUSTRATION K Serial Distribution
Section 905.EXHIBIT B Section View #1 - Gravel System
![](07700905ZZ9996akR_files/image002.gif)
NOTE: Invert of the first relief line must be at least 1
inch lower than invert of the septic tank outlets.
(Source: Amended at 20 Ill. Reg.
2431, effective March 15, 1996)
Section 905.APPENDIX A Illustrations and Exhibits
Section 905.ILLUSTRATION K Serial Distribution
Section 905.EXHIBIT C Plan View #2 - Gravel System
![](07700905ZZ9996akR_files/image003.gif)
(Source: Amended at 20 Ill. Reg.
2431, effective March 15, 1996)
Section 905.APPENDIX A
Illustrations and Exhibits
Section 905.ILLUSTRATION K Serial Distribution

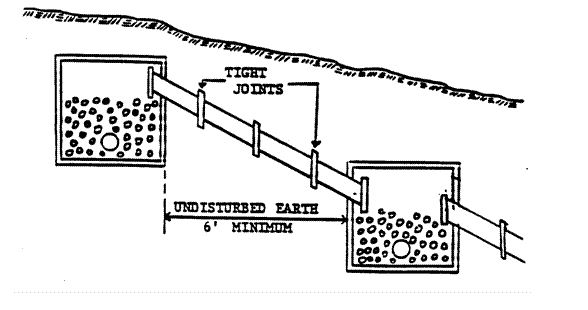

Section 905.EXHIBIT D Section View #2 – Gravel System
![](07700905ZZ9996akR_files/image004.gif)
** Differing
ground slopes over subsurface disposal fields may require use of various
combinations of fittings.
(Source: Amended at 20 Ill. Reg.
2431, effective March 15, 1996)
Section 905.APPENDIX A Illustrations and Exhibits
Section 905.ILLUSTRATION K Serial Distribution

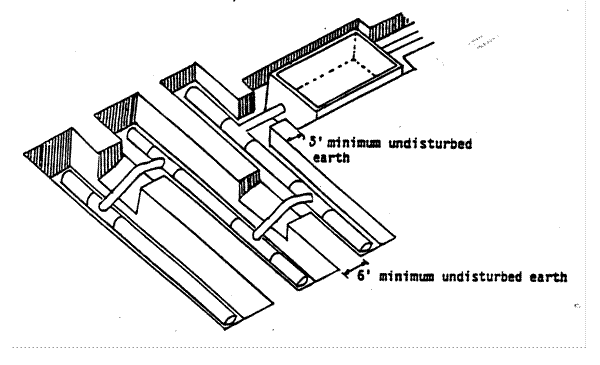

Section 905.EXHIBIT E Plan View #1 – Gravelless System
![](07700905ZZ9996akR_files/image005.gif)
(Source: Amended at 20 Ill. Reg.
2431, effective March 15, 1996)
Section 905.APPENDIX A Illustrations and Exhibits
Section 905.ILLUSTRATION K Serial Distribution

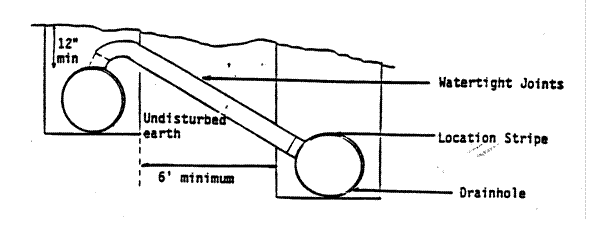

Section 905.EXHIBIT F Section View #1 – Gravelless
System
![](07700905ZZ9996akR_files/image006.gif)
NOTE: Invert of the septic tank outlet
shall be at least one inch higher than the top of the gravelless pipe.
(Source: Amended at 20 Ill. Reg.
2431, effective March 15, 1996)
Section 905.APPENDIX A Illustrations and Exhibits
Section 905.ILLUSTRATION K Serial Distribution

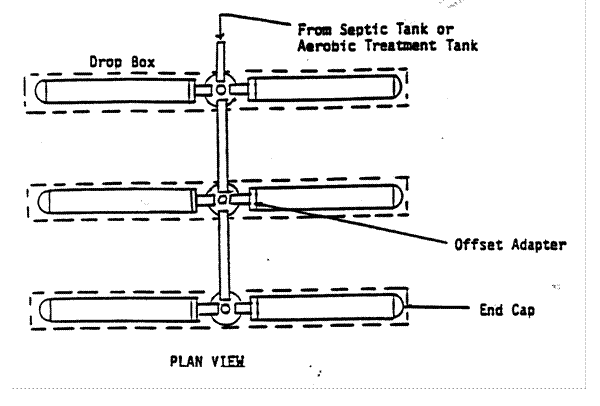

Section 905.EXHIBIT G Plan View #2 – Gravelless System
![](07700905ZZ9996akR_files/image007.gif)
(Source: Amended at 20 Ill. Reg.
2431, effective March 15, 1996)
Section 905.APPENDIX A Illustrations and Exhibits
Section 905.ILLUSTRATION K Serial Distribution

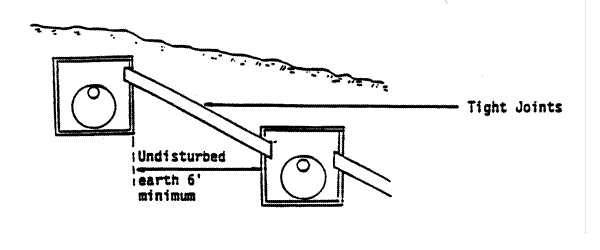

Section 905.EXHIBIT H Section View #2 – Gravelless
System
![](07700905ZZ9996akR_files/image008.gif)
(Source: Amended at 20 Ill. Reg.
2431, effective March 15, 1996)
